Product Introduction
| Parameter | Symbol | Unit | Value |
|---|---|---|---|

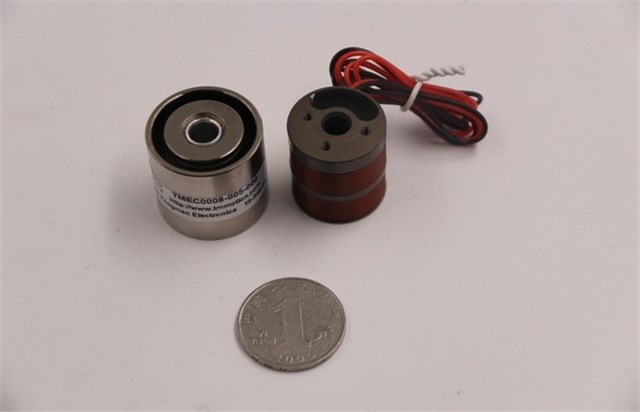

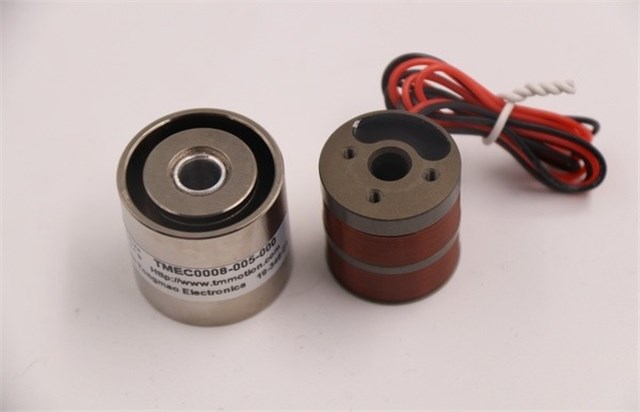

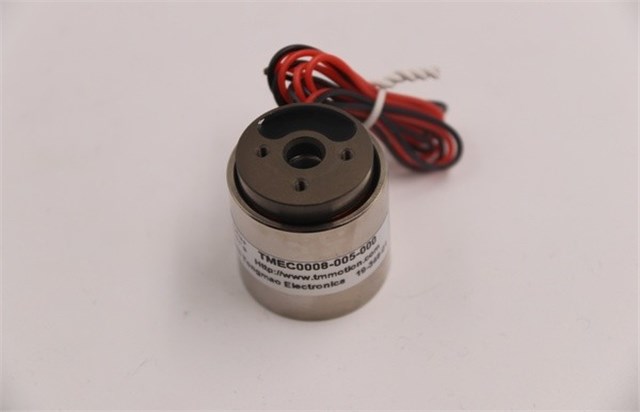

| Product Name | - | - | TMEC0008-005-000 Voice Coil Motor |
| DC Resistance | R | OHMS(Ω) | 3.1 |
| Peak Voltage | Vp | VOLTS(V) | 3.9 |
| Peak Current | Ip | AMPS(A) | 1.2 |
| Force Constant | Kf | N/A | 7.2 |
| Back EMF Constant | Kb | Volts per Meter per Second(V/(m·s)) | 7.2 |
| Inductance | L | Millihenry(mH) | 0.34 |
| Peak Force | Fp | Newton(N) | 8.9 |
| Continuous Thrust | Fc | Newton(N) | 5.3 |
| Motor Constant | Ka | Newton per Square Root Watt(N/√W) | 4.1 |
| Electrical Time Constant | Te | Millisecond(ms) | 0.11 |
| Peak Power | Pp | Watt(W) | 4.8 |
| Peak Displacement | S | Millimeter(mm) | 5.0 |
| Unilateral Air Gap | CL | Millimeter(mm) | 0.5 |
| Thermal Resistance | θth | Celsius per Watt(°C/W) | 24.6 |
| Maximum Winding Temperature | Tmax | Celsius(°C) | 80.0 |
| Coil Weight | WTc | Gram(g) | 16.2 |
| Magnet Weight | WTf | Gram(g) | 75.2 |
| Total Motor Weight | Wta | Gram(g) | 91.4 |
| Overall Length | L | Millimeter(mm) | 37.3 |
| Outer Diameter | ФD | Millimeter(mm) | 27.0 |
| Center Hole Diameter | Фd | Millimeter(mm) | 6.0 |
