Product Introduction
| Parameter | Symbol | Unit | Value |
|---|---|---|---|

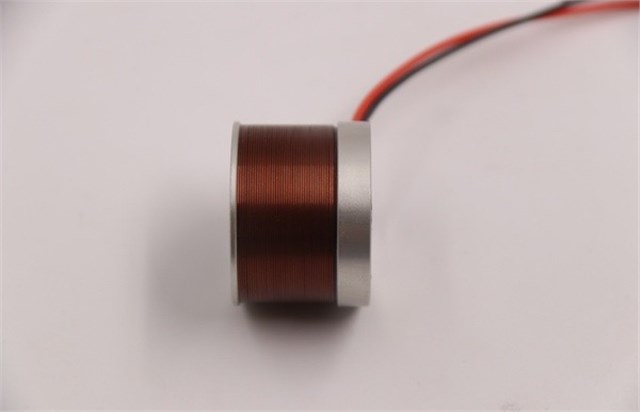

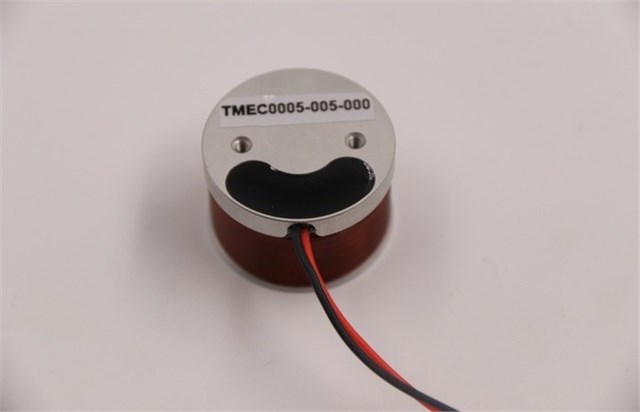

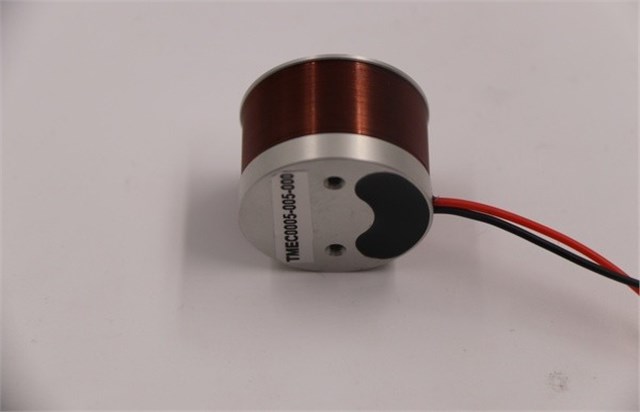

| Product Name | - | - | TMEC0005-005-000 Voice Coil Motor |
| DC Resistance | R | OHMS(Ω) | 9.0 |
| Peak Voltage | Vp | VOLTS(V) | 12.5 |
| Peak Current | Ip | AMPS(A) | 1.4 |
| Force Constant | Kf | N/A | 3.6 |
| Back EMF Constant | Kb | Volt/(Meter·Second)(V/(m·s)) | 3.6 |
| Inductance | L | Millihenry(mH) | 1.0 |
| Peak Force | Fp | Newton(N) | 5.0 |
| Continuous Thrust | Fc | Newton(N) | 2.5 |
| Motor Constant | Ka | Newton/√Watt(N/√W) | 1.2 |
| Electrical Time Constant | Te | Millisecond(ms) | 0.1 |
| Peak Power | Pp | Watt(W) | 17.3 |
| Peak Stroke | S | Millimeter(mm) | 5.0 |
| Single-sided Air Gap | CL | Millimeter(mm) | 0.5 |
| Thermal Resistance | θth | Degree Celsius/Watt(°C/W) | 26.0 |
| Maximum Winding Temperature | Tmax | Degree Celsius(°C) | 150.0 |
| Coil Weight | WTc | Gram(g) | 9.0 |
| Magnet Weight | WTf | Gram(g) | 40.0 |
| Total Motor Weight | Wta | Gram(g) | 49.0 |
| Overall Length | L | Millimeter(mm) | 23.2 |
| Outer Diameter | ФD | Millimeter(mm) | 25.0 |
