Product Introduction

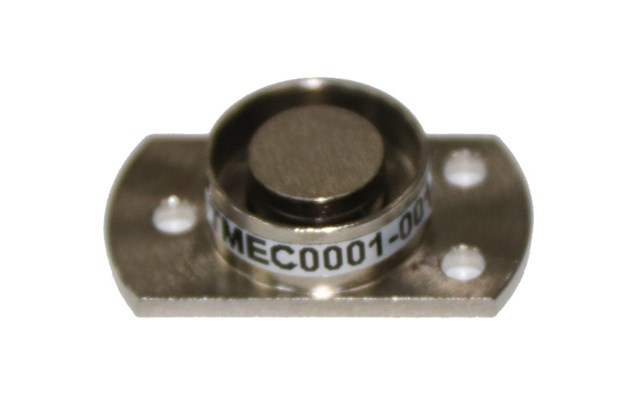

| Product Name | TMEC0001-001-00A | Voice coil motor | |
| Motor parameters | Symbol | Organization | Numerical value |
| DC resistance | R | OHMS | 0.52 |
| Peak voltage | Vp | VOLTS | 1.7 |
| Peak current | Ip | AMPS | 3.3 |
| Force constant value | Kf | N/A | 0.21 |
| Reverse electromotive force | Kb | V/M/Sec | 0.21 |
| Inductance | L | mH | 0.004 |
| Peak force | Fp | N | 0.7 |
| Continuous thrust | Fc | N | 0.35 |
| Motor constant | Ka | N/√w | 0.3 |
| Time constant | Te | ms | 0.008 |
| Peak power | Pp | W | 5.7 |
| Peak displacement | S | mm | 1.0 |
| Single-sided air gap | CL | mm | 0.4 |
| Heat resistance | θth | C/W | 77 |
| Winding temperature | Tmax | C | 155 |
| Coil weight | WTc | g | 2.7 |
| Magnet weight | WTf | g | 7.3 |
| Motor weight | Wta | g | 10 |
| Total length of the motor | L | mm | 12.18 |
| Outer diameter | ФD | mm | 13 |
