Product Introduction

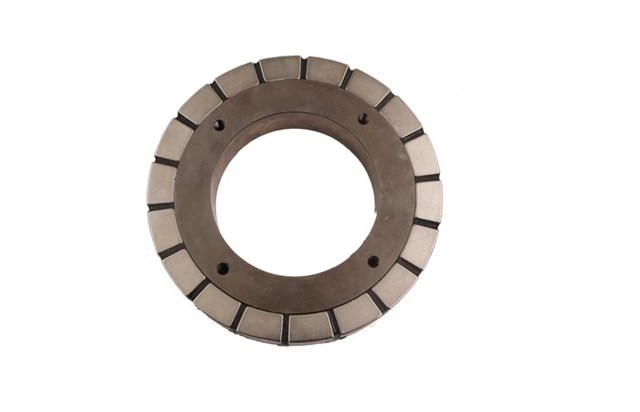

| Product Name: | TMDR-180-044 | ||
| Motor parameters | Symbol | Organization | Numerical value |
| Resistance @ 25℃ P-P | R | OHMS | 4.3 |
| Peak current | Ip | Arms | 15.3 |
| Continuous current | Ic | Arms | 3.85 |
| Torque constant | Kf | N-M/Arms | 1.52 |
| Reverse electromotive force | Kb | Vpk/krpm | 129.9 |
| Inductance P-P | L | mH | 4.4 |
| Peak torque | Tp | N-M | 23.2 |
| Continuous torque | Tc | N-M | 5.8 |
| Rated rotational speed | Sp | RPM | 1000 |
| Motor constant | Ka | N-M/ w | 0.59 |
| Time constant | Te | ms | 1.0 |
| Peak power | Pp | W | 1503.7 |
| Continuous power | Pc | W | 93.9 |
| Winding temperature | Tmax | C | 120 |
| Rotational inertia | /c | Kg-m2 | 7.3*10-3 |
| Coil weight | WTc | kg | 1.5 |
| Magnet weight | WTf | kg | 2 |
