Product Introduction
| Parameter | Symbol | Unit | Value |
|---|---|---|---|

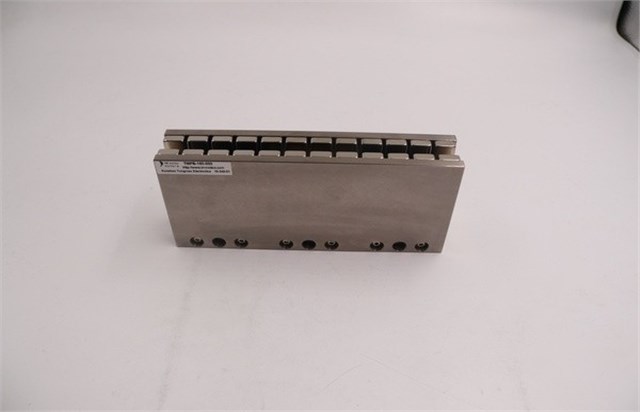

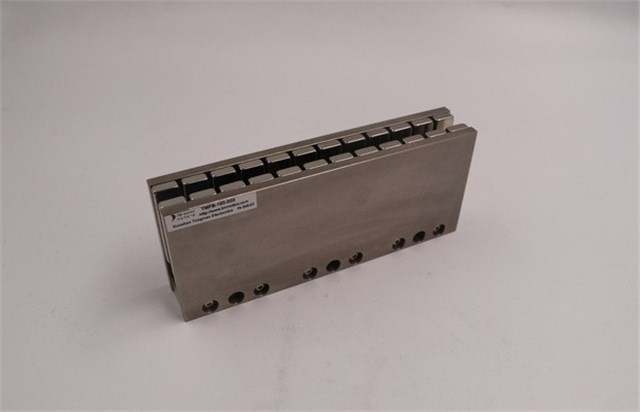

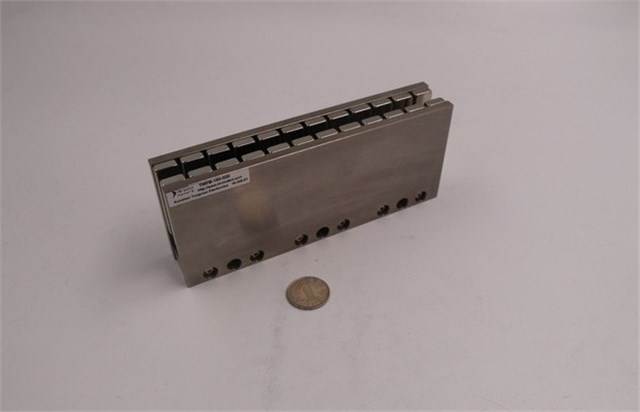

| Product Name (Mover) | - | - | TMCB0150-260-000 U-shaped Linear Motor Mover |
| Dielectric Withstand Voltage | - | - | AC1500V, 1min |
| Insulation Resistance | - | - | ≥100MΩ @ DC500V |
| Ambient Operating Temperature | - | C(℃) | 0~40 |
| Ambient Operating Humidity | - | %RH | 20~80 |
| Cooling Method | - | - | Natural Cooling |
| Peak Coil Temperature | - | C(℃) | 120 (Class E) |
| Resistance @25℃ P-P | R | OHMS(Ω) | 22.9 |
| Peak Current | Ip | Arms | 5.3 |
| Continuous Current | Ic | Arms | 1.5 |
| Force Constant | Kf | N/Arms | 99.0 |
| Back EMF Constant | Kb | Vrms/(m/s) | 57.2 |
| Inductance P-P | L | mH | 7.2 |
| Peak Force | Fp | N | 525.0 |
| Continuous Thrust | Fc | N | 150.0 |
| Motor Constant | Ka | N/√W | 16.9 |
| Electrical Time Constant | Te | ms | 0.3 |
| Peak Power | Pp | W | 970.0 |
| Peak Displacement | Pc | W | 80.0 |
| Thermal Resistance | θth | C(℃)/W | 1.0 |
| Maximum Winding Temperature | Tmax | C(℃) | 120.0 |
| Coil Weight | WTc | g | 930.0 |
| Total Length | L | mm | 255.0 |
| Compatible Stator Model 1 | - | - | TMFB-180-000 |
| Product Name (Stator TMFB-180-000) | - | - | U-shaped Linear Motor B Series |
| Standard Length (Stator TMFB-180-000) | L | mm | 180.0 |
| Standard Width (Stator TMFB-180-000) | W | mm | 78.0 |
| Standard Thickness (Stator TMFB-180-000) | T | mm | 31.7 |
| Magnet Rail Weight (Stator TMFB-180-000) | Wta | Kg/m | 13.1 |
| Compatible Stator Model 2 | - | - | TMFB-300-000 |
| Product Name (Stator TMFB-300-000) | - | - | U-shaped Linear Motor B Series |
| Standard Length (Stator TMFB-300-000) | L | mm | 300.0 |
| Standard Width (Stator TMFB-300-000) | W | mm | 78.0 |
| Standard Thickness (Stator TMFB-300-000) | T | mm | 31.7 |
| Magnet Rail Weight (Stator TMFB-300-000) | Wta | Kg/m | 13.1 |
| Optional Accessories | - | - | TMHA-01/03/05/09/15 |
