| Product Name | TMCA0030-080-000 | U-shaped linear motor | |
| Insulation withstand voltage | AC1500 1min | Insulation resistance | DC500V, over 100M |
| Ambient temperature | 0-40 degrees | Environmental humidity | 20% - 80% |
| Cooling method | Natural cooling | Coil peak temperature | 120℃ (Class E |
| Motor parameters | Symbol | Unit | Numerical value |
| Resistance @25℃ P-P | R | OHMS | 4.7 |
| Peak current | Ip | Arms | 6.7 |
| Continuous current | Ic | Arms | 1.9 |
| Constant force value | Kf | N/Arms | 15.6 |
| Counter electromotive force | Kb | Vrms/M/S | 9 |
| Inductance P-P | L | mH | 1.5 |
| Peak force | Fp | N | 105 |
| Continuous thrust | Fc | N | 30 |
| Motor constant | Ka | N/√w | 5.9 |
| Time constant | Te | ms | 0.3 |
| Peak power | Pp | W | 310 |
| Peak displacement | Pc | W | 26 |
| Thermal resistance | θth | C/W | 3 |
| Winding temperature | Tmax | C | 120 |
| Coil weight | WTc | g | 220 |
| Chief Executive | L | mm | 75 |
Linear motors, voice coil motors & system integration
首页 Ironless linear motor

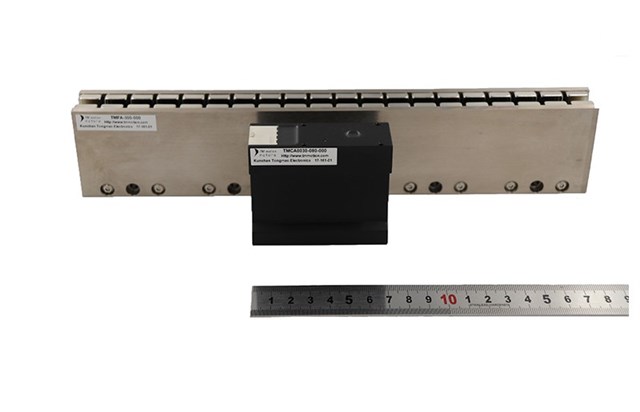

TMCA0030-080-000
The coreless AC brushless linear motors (linear motors, linear motors) we provide are applied in servo systems. We offer standard magnetic rails and can be made into platform systems, multi-axis systems, and can also be customized according to customer requirements.
