Product Introduction

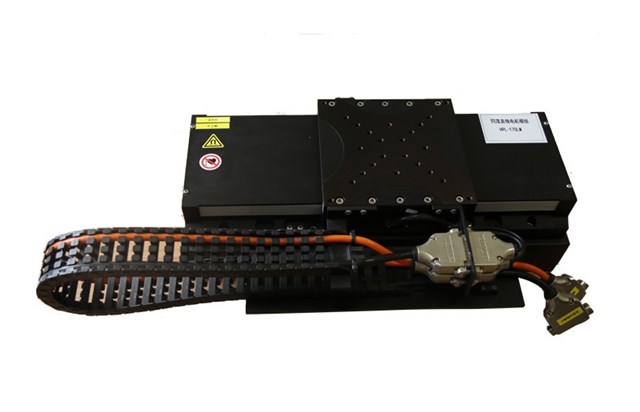

| Product Name | Linear motor module HPL-170LM | |||
| Motor parameters | Symbol | unit | value | |
| Itinerary | Travel | mm | 200 | |
| Positioning accuracy（1） | Standard | Standard | μm | ±8.5 |
| Linear error correction | Facter | μm | ±2 | |
| Resolution | Resolution | μm | 0.1 | |
| Bidirectional repeat positioning accuracy（1） | Bi-Directional | μm | ±0.75 | |
| Straightness（1） | Straightness | μm | ±4.5 | |
| Flatness（1） | Flatness | μm | ±4.5 | |
| Pitch Angle error （1） | Pitch | arc sec | 10 | |
| Roll Angle error | Roll | arc sec | 10 | |
| Yaw Angle error (1 | Yaw | arc sec | 12 | |
| Peak speed (3) (No Load) | Maximum Speed | mm/s | 2000 | |
| Peak acceleration (3) (No Load) | Maximum Acceleration | g | 3 | |
| Peak continuous thrust | Maximum Continuous Force | N | 60 | |
| Load capacity (2） | Level | Horizontal | Kg | 45 |
| Side-mounted | Side | Kg | 45 | |
| Quality of the sports table | Moving Mass | Kg | 2.7 | |
| Platform quality | Stage Mass | Kg | 11.6 | |
| Material | Aluminum,7075 | |||
